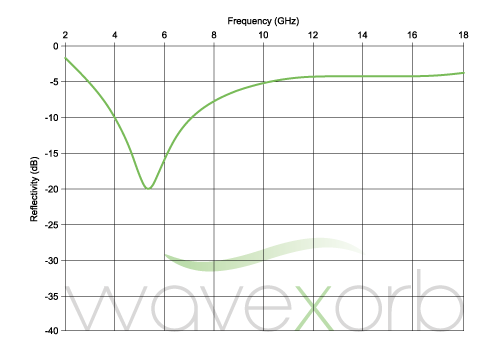

Designed to be applied to a conductive surface for traveling wave attenuation, wavexorb Surface Wave Absorbers are magnetically loaded elastomeric absorbers providing high loss characteristics. Surface Wave Absorbers have the ability to attenuate surface wave energy from 1 to 20 GHz. Standard formulations utilize a silicone matrix, but other elastomeric binders are available to support applications with unique environmental requirements.
Material: | Silicone |
Color: | Dark Grey |
Thickness: | 0.060" (1.52 mm) |
Adhesive: | 0.005" (0.13 mm) |
Temp Range: | -60°F to 375°F (-51°C to 190°C) |
RoHS Compliant | |
Contains no halogens |
