Microwave Absorbers - Surface Wave

SN017-080 - Surface Wave Microwave Absorber

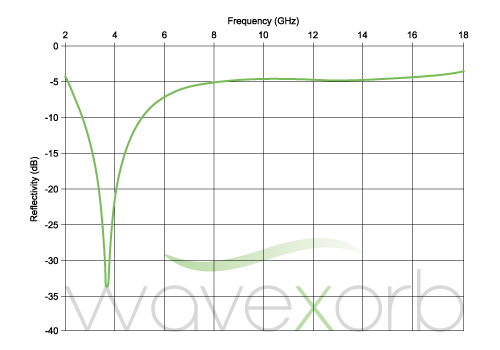

Designed to be applied to a conductive surface for traveling wave attenuation, wavexorb Surface Wave Absorbers are magnetically loaded elastomeric absorbers providing high loss characteristics. Surface Wave Absorbers have the ability to attenuate surface wave energy from 1 to 20 GHz. Standard formulations utilize a silicone matrix, but other elastomeric binders are available to support applications with unique environmental requirements.

[...] = OPTIONAL

(-01) 24" x 24" (609mm x 609mm)

(-02) 12" x 24" (305mm x 609mm)

(-03) 12" x 12" (305mm x 305mm)

[-A] Add -A for PSA backing

Material: Silicone
Color: Dark Grey
Thickness: 0.080" (2.03 mm)
Adhesive: 0.005" (0.13 mm)
Temp Range: -60°F to 375°F
(-51°C to 190°C)
RoHS Compliant
Contains no halogens
